Ceramic fiber textiles
China Ceramic Fiber ropes, tapes, cloth & textiles manufacturer
FUERTE Ceramic fiber textiles include products such as yarn, cloth, tape, twisted ropes, and braided ropes. These are manufactured using ceramic fiber cotton, E-glass fiber, or high-temperature resistant stainless steel alloy wires. The manufacturing process involves blending, carding, twisting, and spinning, followed by processing through looms, tape machines, and rope braiding machines to produce ceramic fiber cloth, tape, rope, and braided products. In addition to the mentioned products, we also offer high-temperature resistant textiles with special specifications and performance based on user requirements for operating temperatures and specific usage conditions. get a inquiry now!
Ceramic Fiber textiles– Typical Applications
Ceramic Fiber Textiles (cloth, tape, rope, yarn) contain organic fibers, they can be damaged at temperatures of 200℃. This is a common phenomenon where the color of the products may change from white to black due to smoke and flames. Upon resolving the organic composition, the product will return to its original white color. Although the tensile strength will be reduced, it does not affect the physical and chemical characteristics. We can provide smoke-free ceramic fiber cloth ropes according to your request
Insulation: Ceramic fiber textiles are commonly used for thermal insulation in industrial furnaces, boilers, kilns, and other high-temperature equipment. They help maintain high temperatures and improve energy efficiency.
Sealing and Gasketing: These textiles are used to create seals and gaskets in high-temperature applications. They can be used to prevent heat loss and contain gases or liquids.
Expansion Joints: Ceramic fiber textiles are used in expansion joints to accommodate thermal expansion and contraction in industrial processes.
Curtains and Blankets: They are used as curtains or blankets to shield personnel and equipment from high-temperature heat sources.
Fireproof Clothing: In some specialized applications, ceramic fiber textiles are used to manufacture fire-resistant clothing and personal protective equipment (PPE).
Filter Media: Ceramic fiber textiles can be used as filter media in applications where high-temperature filtration is required, such as in the metallurgical industry.
Ceramic Mold Wraps: In investment casting processes, ceramic fiber textiles are used to create molds for precision casting.
Ceramic Fiber textiles– feature
FUERTECeramic fiber textiles are Reinforced with stainless steel and glass fiber; Ceramic fiber cloth and ceramic fiber tape are produced using two weaving techniques: plain weave and twill weave.
Classification temperature | 1260°C(2300℉) 1430°C(2600℉)
| |||||||
`Product name | yarn | cloth | rope | tape | ||||
Product Code | YXTX208G1 | YXTX208G2 | YXTX208A1 | YXTX208A2 | YXTX208C1 | YXTX208C2 | YXTX208B1 | YXTX208B2 |
Continuous Temperature Use limit | 650°C | 1050°C | 650°C | 1050°C | 650°C | 1050°C | 650°C | 1050°C |
Reinforcement material | Fiberglass | Stainless steel | Fiberglass | Stainless steel | Fiberglass | Stainless steel | Fiberglass | Stainless steel |
Moisture content | ≤1% | ≤2% | ≤1% | ≤2% | ||||
Organic content | ≤18% | ≤18% | ≤18% | ≤18% | ||||
Theoretical density |
| 500±15 kg/m3 | (500~650)±30 kg/m3 | 500± (15~30) kg/m3 |
High-Temperature Resistance: Ceramic fiber textiles can withstand extremely high temperatures, typically up to 2300°F (1260°C) or even higher, making them suitable for use in furnaces, kilns, and other high-temperature environments.
Low Thermal Conductivity: They have low thermal conductivity, which means they provide effective thermal insulation and help reduce heat transfer in industrial equipment.
Chemical Resistance: Ceramic fiber textiles are resistant to most chemicals, making them suitable for use in corrosive environments.
Lightweight: They are lightweight and easy to handle, making them suitable for various applications.
Flexibility: Ceramic fiber textiles are flexible and can be woven or braided into different forms and shapes to suit specific needs.
ceramic fiber insulation textiles products
Ceramic fiber products are made from high-purity raw materials such as clay, alumina powder, silica powder, chromite powder, and coal gangue. These materials are melted in an industrial electric furnace to form a fluid, and then they are transformed into fibers using compressed air blowing or spinning. After passing through a cotton collector, they become ceramic fiber cotton. This fiber cotton can be further processed into products such as fiber blankets, fiber paper, fiber cloth, fiber ropes, and more.
ceramic fiber cloth
Ceramic fiber cloth is a type of textile material made from ceramic fibers. It is designed to withstand extremely high temperatures and is commonly used in industrial applications where heat insulation, protection, and resistance to high temperatures are required, can endure temperatures ranging from 2300°F (1260°C) up to 2600°F (1430°C) or higher, depending on the specific type and composition of the material.
After heat treatment can burn off the organic fiber, to make the cloth non-flammable and less smoke.
Width(mm) | 300~1500 |
Thickness(mm) | 1.6~6 |
Standard length(m) | 30 |
Classification temperature(℃) | 1260/1430 |
Thickness×Width×Length | Reinforced materials |
2mm×1000mm×30m | ·Glass fiber ·Glass fiber + stainless steel wire · |
3mm×1000mm×30m | |
5mm×1000mm×20m | |
6mm×1000mm×20m |
ceramic fiber tape
Ceramic fiber tape is a type of textile material made from ceramic fibers. Like other ceramic fiber products, it is designed to withstand high temperatures and is commonly used in industrial applications where heat insulation, sealing, and protection are required.
- 2/3mmThickness Plain Weave

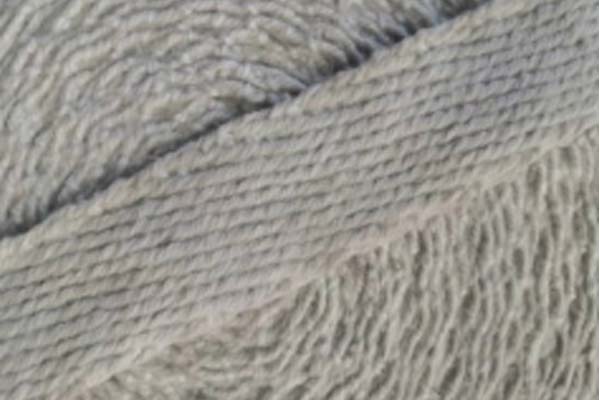

5/6mm Thickness Twill Process
Ceramic Fiber Tape coated with vermiculite
Ceramic Fiber Tape covered with aluminum foil
Ceramic Fiber Drop Warp Tape
Width(mm) | 20~150 |
Thickness(mm) | 1.6~6 |
Standard length(m) | 30 |
Classification temperature(℃) | 1260/1430 |
Reinforced materials | Glass fiber ·Glass fiber + stainless steel wire |
ceramic fiber sleeving
Ceramic fiber sleeve, also known as ceramic fiber tubing or ceramic fiber hose, is a type of high-temperature insulation product made from ceramic fibers. It is designed to provide thermal insulation, protection, and sealing in high-temperature industrial applications.
Temperature Grade | 2460°F (1260°C) |
Composition | Refractory Ceramic fiber |
Chemistry | Alumina, Sillica |
ceramic fiber rope
Ceramic fiber rope is a type of high-temperature gasket or sealing material made from ceramic fibers. It is designed to withstand extremely high temperatures and is commonly used in industrial applications where heat insulation, sealing, or packing is required. can endure temperatures ranging from 2300°F (1260°C) up to 2600°F (1430°C) or higher, depending on the specific type and composition of the material.
Temperature Grade | 2460°F (1260°C) |
Composition | Refractory Ceramic fiber |
Chemistry | Alumina, Sillica |
Ceramic fiber yarn
Blend a small amount of organic fiber into ceramic fiber bulk, using fiberglass filament as the core. We can add stainless steel wire as the reinforced material. The yarn which added with metal wire can still have super tensile strength in high temperature atmosphere. The yarn can be used to weave cloth, tape, sleeve, rope and many other high performance refractory textile.
Ply number | 1~5 |
Fineness(Tex) | 525、630、700、780、830、1000、2000、2250 |
Classification temperature(℃) | 1260/1430 |
Reinforced materials | Glass fiber ·Glass fiber+stainless steel wire |
