Ceramic fiber blankets
Ceramic fiber insulation blanket is Excellent insulating properties, low thermal conductivity, excellent temperature resistance, low thermal conductivity: applied in furnace kiln, reformer and boiler lining, furnace door lining and seals, furnace repair, annealing furnace linings, lining steel ladles, tundishes, expansion joints packing, fire protection and etc.
China Ceramic fiber blanket manufacturer & supplier
Ceramic fiber blankets are produced through a continuous manufacturing process, and after needle-punching, the fibers are evenly interwoven. They have high tensile strength, contain no binding agents, and exhibit a pure white color, uniform dimensions, and combine the functions of fire resistance, thermal insulation, and heat preservation. These products possess excellent resistance to chemical corrosion (excluding hydrofluoric acid, phosphoric acid, and strong alkalis such as K2O/Na2O). When used in neutral or oxidizing atmospheres, they maintain good tensile strength, toughness, and microstructure. These products are not affected by oil erosion and can regain their thermal properties and physical characteristics after drying. They are available in various volumetric densities and size specifications, allowing customers to choose the optimal insulation structure and performance.
High resistant flexible ceramic blankets – Typical Applications
- – Furnace repair
- – Furnace, kiln, reformer and boiler linings
- – Furnace door linings and seals
- – Reusable insulation for steam and gas turbines
- – High temperature insulation for kiln and furnace
- – Primary reformer heater insulation
- – High temperature insulation gaskets
- – Expansion joint seals
- – Glass furnace crown insulation
- – Field steam generator lining
- – Nuclear insulation applications
- – Thermal reactor insulation
- – Flexible high temperature pipe insulation
- – Investment casting mold wrapping
- – Removable casting mold wrapping
- – Removable insulating blankets for stress relieving welds
- – Pressure and cryogenic vessel fire protection
- – Soaking pit seals
- – High temperature filtration
- – Incineration equipment and stack linings
Ceramic insulation Blanket – Properties
ceramic blanket normaly used with ceramic wool, ceramic fiber paper.
Description | Fuerte | Fuerte | Fuerte | Fuerte | |||||
Classification Temperature (℃ ) | 1260 | 1260 | 1350 | 1430 | |||||
Chemical Composition (%) | |||||||||
Al2O3 | ≥43 | ≥44 | ≥52 | ≥35 | |||||
SiO2 | ≥54 | ≥55 | ≥47 | ≥49 | |||||
ZrO2 | – | – | – | ≥15 | |||||
Color | White | White | White | White | |||||
Shot Content (%) | ≤15 | ≤15 | ≤15 | ≤12 | |||||
Density (kg/m³) | 64 | 96 | 128 | 96 | 128 | 96 | 128 | 96 | 128 |
Tensile Strength (kPa) | 30 | 50 | 70 | 50 | 70 | 50 | 70 | 50 | 70 |
Permanent Linear Shrinkage (%) | 1000℃ x 24h ≤2.5 | 1100℃ x 24h ≤2.5 | 1200℃ x 24h ≤3.0 | 1350℃ x 24h ≤3.0 | |||||
Thermal Conductivity (W/m·K) | |||||||||
200℃ | 0.07 | 0.06 | 0.06 | 0.06 | 0.06 | 0.06 | 0.06 | 0.06 | 0.06 |
400℃ | 0.12 | 0.11 | 0.10 | 0.11 | 0.10 | 0.11 | 0.10 | 0.11 | 0.10 |
600℃ | 0.20 | 0.19 | 0.18 | 0.19 | 0.17 | 0.18 | 0.16 | 0.16 | 0.15 |
800℃ | 0.30 | 0.23 | 0.20 | 0.23 | 0.20 | 0.22 | 0.20 | 0.21 | 0.19 |
1000℃ | 0.40 | 0.32 | 0.27 | 0.31 | 0.26 | 0.30 | 0.26 | 0.30 | 0.26 |
ceramic fiber insulation blanket roll
High temperature Ceramic blankets are made from high-purity raw materials such as clay, alumina powder, silica powder, chromite powder, and coal gangue. These materials are melted in an industrial electric furnace to form a fluid, and then they are transformed into fibers using compressed air blowing or spinning. After passing through a cotton collector, they become ceramic fiber cotton. This fiber cotton can be further processed into products such as fiber blankets, fiber paper, fiber cloth, fiber ropes, and more.The classification: Hydrophobic Ceramic Fiber Blanket；Ceramic Fiber Blanket with Aluminum Foil Cover. we also use the fiberglass for the project thermal management.
1260 fiber blankets features
Refractory Ceramic Fiber Blanket is made from spun ceramic fiber needled to provide exceptional high temperature insulation applications, available in a variety of sizes, suitable for high temperature insulation up to 2300°F.
| Temperature Grade | 2300 °F( 1260°C) |
| Composition | Refractory Ceramic FIber |
| Chemistry | Alumina, Sillica |
| Density | 80kg/m³ to 160kg/m³ |
Thickness | From 6 mm to 60 mm |
Lengths | Cusomized |
Widths | 100mm, 400mm, 500mm, 600mm, 700mm, etc |
1430 fiber blankets features
1430 insulating Ceramic Fiber Blanket is made from spun ceramic fiber needled to provide exceptional high temperature insulation applications, available in a variety of sizes, suitable for high temperature insulation up to 2300°F.
| Temperature Grade | 2600 °F( 1430°C) |
| Composition | Refractory Ceramic FIber |
| Chemistry | Alumina, Sillica |
| Density |
80kg/m³ to 160kg/m³ |
|
Thickness |
From 6 mm to 60 mm |
|
Lengths |
Cusomized |
|
Widths |
100mm, 400mm, 500mm, 600mm, 700mm, etc |
1600 fiber blankets features
1600 Ceramic Fiber kiln Blanket is made from spun ceramic fiber needled to provide exceptional high temperature insulation applications, available in a variety of sizes, suitable for high temperature insulation up to 2912°F.
| Temperature Grade | 2912°F( 1600°C) |
| Composition | Refractory Ceramic FIber |
| Chemistry | Alumina, Sillica |
| Density | 80kg/m³ to 160kg/lm³ |
Thickness | From 6 mm to 60 mm |
Lengths | Cusomized |
Widths | 100mm, 400mm, 500mm, 600mm, 700mm, etc |
Ceramic Fiber Blanket with Reinforced Aluminum Foil
Ceramic Fiber Blanket with Reinforced Aluminum Foil is a needled blanket with a single-sided layer of reinforced aluminum foil. It is made from high purity spun ceramic fiber, suitable for high temperature insulation up to 1922°F (1050°C) and 2300°F (1260°C)
Types(℃) | 1050 Common Ceramic Fiber Blanket | 1260 Ceramic Fiber Blanket | 1260 Ceramic Fiber Blanket |
Operation Temp(℃) | 950℃ (1742℉) | 1050℃ (1922℉) | 1100℃ (2012℉) |
Density (kg/m3) | 64-160 | ||
Permanent Change on Heating (%) | 950℃x24 h≤-3 | 1050℃x24h ≤-3 | 1100℃x24h ≤-3 |
Tensile Strength(Mpa) (Thickness 25mm) | ≥0.04 | ≥0.05 | ≥0.05 |
Theoretic Heat Conductive Co-efficient W/(m·k)(128kg/m3) | 0.15(600℃) 0.22(800℃) | 0.12(600℃) 0.20(800℃) | 0.12(600℃) 0.20(800℃) |
Ceramic fiber blankets With Single Side Aluminum Coating
Ceramic fiber blankets with a single-side aluminum coating are insulating materials made from ceramic fibers with one side coated in aluminum. The ceramic fibers provide excellent insulation properties, with high-temperature resistance and low thermal conductivity, making them suitable for various industrial applications where heat retention is crucial. The aluminum coating enhances certain properties such as reflectivity, durability, and resistance to moisture. This type of blanket is often used in applications where heat reflection or protection against radiant heat is necessary, such as in furnaces, boilers, kilns, and other high-temperature environments. The aluminum coating can help enhance the performance of the blanket in these extreme heat conditions
ypes(℃) | 1050 Common Ceramic Fiber Blanket | 1260 Ceramic Fiber Blanket | 1260 Ceramic Fiber Blanket |
Operation Temp(℃) | 950℃ (1742℉) | 1050℃ (1922℉) | 1100℃ (2012℉) |
Density (kg/m3) | 64-160 | ||
Permanent Change on Heating (%) | 950℃x24 h≤-3 | 1050℃x24h ≤-3 | 1100℃x24h ≤-3 |
Tensile Strength(Mpa) (Thickness 25mm) | ≥0.04 | ≥0.05 | ≥0.05 |
Theoretic Heat Conductive Co-efficient W/(m·k)(128kg/m3) | 0.15(600℃) 0.22(800℃) | 0.12(600℃) 0.20(800℃) | 0.12(600℃) 0.20(800℃) |

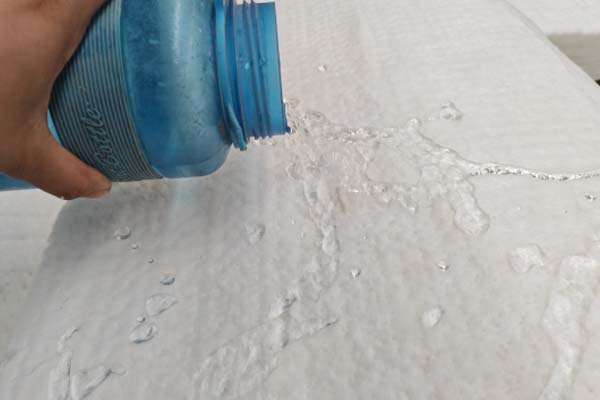

Hydrophobic Ceramic Fiber Blanket
Using ceramic fiber spun cotton as the raw material and incorporating a hydrophobic agent through a special process, this product is a novel refractory insulation material that combines fire resistance, thermal insulation, insulation, and waterproof functions.
Product Features:
- Excellent waterproof performance with a waterproof rate of over 98%
- Low thermal conductivity
- Non-flammable, moisture-resistant, good sound absorption
- Excellent tensile strength, long service life
Typical Applications:
- Insulation for power/petrochemical pipelines
- Lining for industrial kilns
- Fireproof roller blinds
